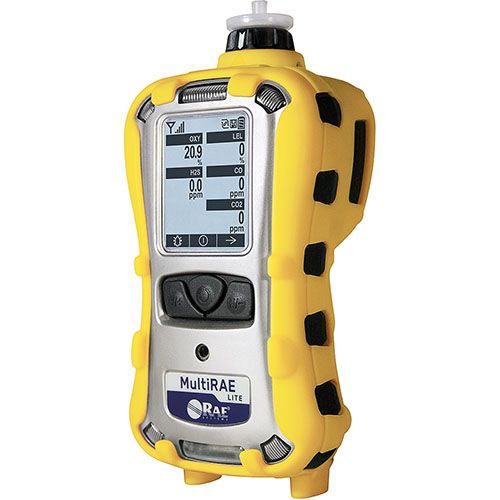

MultiRAE Lite PID by RAE Systems - Multigas Monitor
RAE Systems' MultiRAE Lite multigas pumped monitors give you the ability to detect and monitor up to six gases for personal protection and industrial leak detection applications. MultiRAE Lite can test for VOCs in a range of 0-1000 ppm, combustibles, and a range of toxic threats, plus monitor sufficient oxygen levels.
Rental Includes: MultiRAE Lite Gas Monitor, Travel Charger with USB Connection, A/C Charger, Alkaline Battery Pack, Calibration Cap, Phillips Screwdriver & Dual Hex Wrench, PID Removal Tool, Spare Charcoal Filters (for CO Sensor), Mini USB Cable, Spare Pump Filter, Safety Suite Device Configurator on Flash Drive.
*** RAE Probe Kit for 10ft tubing extension available for rent ***
*** 7L Gas Canisters for in-field calibration available for purchase. ***
|
Available Electrochemical Sensors You can choose up to 6 sensors including the PID/VOC Sensor: |
|||||
|---|---|---|---|---|---|
| Standard | Optional ($45 charge for non-standard sensor replacement) | ||||
| Sensor | Range | Resolution | Sensor | Range | Resolution |
| CO | 0–500 ppm | 1.0 ppm | CL2 | 0–50 ppm | 0.1 ppm |
| CO, H2-Compensated | 0–2000 ppm | 10 ppm | H2 | 0–1,000 ppm | 10 ppm |
| CO / H2S Combo | 0–500 ppm CO; 0–100 ppm H2S | 1 ppm CO; 0.1 ppm H2S | HCHO | 0–10 ppm | 0.01 ppm |
| LEL | 0–100% volume | 1% | NH3 | 0–100 ppm | 1.0 ppm |
| O2 | 0–30% volume | 0.1% | NO | 0–250 ppm | 0.5 ppm |
| H2S | 0–100 ppm | 0.1 ppm | NO2 | 0–20 ppm | 0.1 ppm |
| VOC | 0–1000 ppm | 1 ppm | SO2 | 0–20 ppm | 0.1 ppm |
| EtOA | 0–100 ppm | 0.5 ppm | |||
- 0-1000 ppm range PID, 1 ppm resolution
- Display readout shows real-time gas concentrations, PID measurement gas and correction factor, STEL, TWA, peak and minimum values
- Visual, audible, and vibratory alarms plus Man Down Alarm
- Battery life up to 12 hours with rechargeable Li-ion pack; Alkaline included for additional 6 hours runtime
- Certified as Intrinsically Safe by DoC, ATEX, IECEx, IP-67, IP-65, and CSA
- Fully automated bump testing and calibration with RAE Systems AutoRAE 2
| SKU | MAB3-A2C112E-011 |
|---|---|
| Manufacturer | Honeywell RAE Systems |
| Kit Contents | MultiRAE Lite Gas Monitor, Travel Charger with USB Connection, A/C Charger, Alkaline Battery Pack, Calibration Cap, Phillips Screwdriver & Dual Hex Wrench, PID Removal Tool, Spare Charcoal Filters (for CO Sensor), Mini USB Cable, Spare Pump Filter, Safety Suite Device Configurator on Flash Drive. |
| Gas Sensor Type | Photoionization Detector (PID) |
| Measuring Range VOCs | 0 - 1000 PPM |
| Measuring Range H2S | 0.1 - 100 PPM |
| Measuring Range LEL | 0 - 100% LEL |
| Measuring Range CO | 0 - 500 PPM |
| Measuring Range O2 | 0 - 30% |
| Internal Memory | 6 months for 5 sensors at 1-minute intervals |
| Power | Alkaline Batteries , Rechargeable Lithium Ion Battery |
| Shipping Dimensions (LxWxD) | 18x14x9 |
| Weight (lbs) | 11.000000 |
