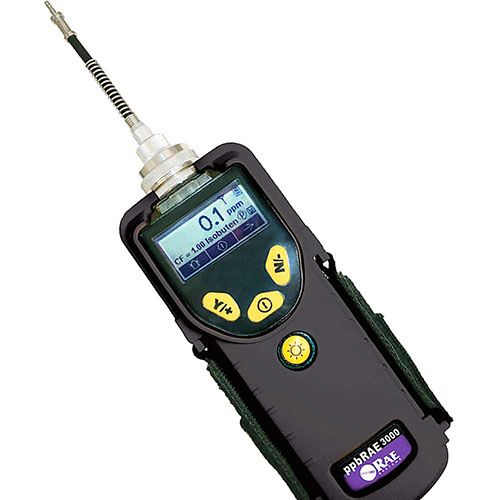

ppbRAE 3000 by RAE Systems - Handheld VOC Monitor
RAE Systems’ ppbRAE 3000 is an advanced handheld photoionization detector with parts per billion measurement and built-in correction factors for more than 220 volatile organic compounds. It is commonly used in CBRNE, hazmat response, search and rescue, decontamination, civil defense, oil and gas, and other hazardous environments.
The monitor has a large display and large keys that can be operated with three layers of gloves, making it easy to use and maintain in the field.
Kit Includes: ppbRAE 3000 monitor, hard transport case with pre-cut foam padding, charging/download cradle, 5 porous metal filters and O-rings, organic vapor zeroing kit, gas outlet port adapter and tubing.
The RAE Systems ppbRAE 3000 is an advanced handheld VOC monitor designed for ultra-low-level detection of volatile organic compounds (VOCs). Using a photoionization detector (PID) with a 10.6eV UV lamp, it delivers real-time measurements with resolution of 1ppb & range of 1 ppb to 10,000 ppm. With a fast 2-second response time and datalogging capacity for 260,000 data points, the ppbRAE 3000 provides unmatched accuracy and dependability in hazardous environments. It supports over 200 built-in correction factors, Bluetooth or RF wireless communication, and a rugged housing rated for Class I, Division 1 hazardous locations.
Rental Includes: ppbRAE 3000 monitor with flexible inlet probe & filter, Charging dock with AC adapter, USB A/B cable, Spare external filter (1), Carbon filter (1), PID lamp cleaning kit, Alkaline battery pack, Screwdriver & Allen wrench, Safety Suite device configurator, manuals & flash drive, Carrying case
Measurement Range & Resolution:
-
-
10.6 eV: 1 ppb to 10,000 ppm (1 ppb resolution)
-
-
Accuracy: ±3% at calibration point (10–2000 ppm isobutylene)
-
Response Time (T90): 2 seconds
-
Correction factors for more than 220 compounds
-
Pump Flow Rate: 450–550 cc/min, sample draw up to 100 ft (30 m)
-
Battery: Rechargeable Li-ion (up to 16 hrs) or alkaline pack (12 hrs)
-
Data Logging: Stores 260,000 points with time/date/user/site ID
-
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
-
Humidity: 0%–95% RH (non-condensing)
-
Size/Weight: 9.25" × 3.6" × 2.9", 28 oz with battery
-
Intrinsic Safety:
-
US/Canada: Class I, Division 1, Groups A, B, C, D
-
| SKU | 059-C11D-300 |
|---|---|
| Manufacturer | Honeywell RAE Systems |
| Kit Contents | ppbRAE 3000 monitor with flexible inlet probe & filter, Charging dock with AC adapter, USB A/B cable, Spare external filter (1), Carbon filter (1), PID lamp cleaning kit, Alkaline battery pack, Screwdriver & Allen wrench, Safety Suite device configurator, manuals & flash drive, Carrying case |
| Gas Sensor Type | Photoionization Detector (PID) |
| Measuring Range VOCs | 1 PPB - 10000 PPM |
| Internal Memory | 6 Months at 1-Minute Intervals |
| Shipping Dimensions (LxWxD) | 18x14x8 |
| Weight (lbs) | 15.000000 |
