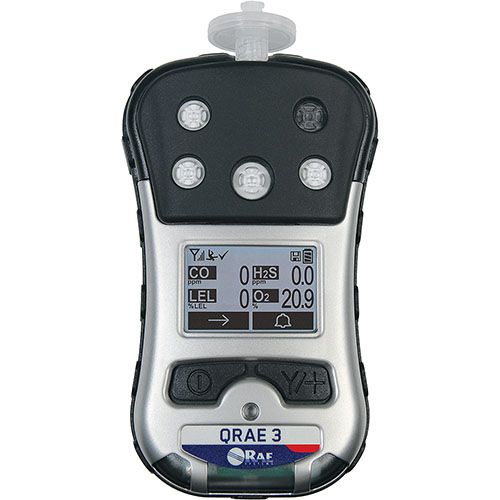

QRAE3 by RAE Systems - Personal Multigas Detector
RAE Systems QRAE 3 is a rugged four-gas monitor for continuous exposure monitoring of combustible gases (%LEL) and toxics for workers and responders in hazardous environments. The large display shows simultaneous readings from all three sensors. The datalogging memory holds up to 3 months of data at 1 minute intervals. For ultimate protection, the QRAE 3 offers three levels of alarm: audible, LED, and vibration.
The QRAE3 by RAE Systems is a compact, wireless-enabled 4-gas monitor designed for personal and confined space safety applications. It simultaneously detects and displays readings for up to four gases: combustible gases (LEL), oxygen (O₂), hydrogen sulfide (H₂S) and carbon monoxide (CO). Each sensor offers industry-standard performance, including: LEL range of 0 to 100% with 1% resolution, O₂ range of 0 to 30.0% with 0.1% resolution, CO range of 0 to 500 ppm with 1 ppm resolution, and H₂S range of 0 to 100 ppm with 0.1 ppm resolution.
The QRAE3 integrates seamlessly with Honeywell’s Safety Suite Device Configurator Software for simplified device setup, datalogging, and compliance tracking. Additional features include user-friendly two-button navigation, a 8-hour runtime minimum. The device records STEL, TWA, peak, and minimum values and stores up to three months of data at 1-minute intervals, with configurable datalogging intervals from 1 to 3,600 seconds.
*** RAE Probe Kit for 10ft tubing extension available for rent ***
*** 7L Gas Canisters for in-field calibration available for purchase. ***
Kit Includes: QRAE 3 gas monitor with up to 4 installed sensors, Charger with USB connection, AC charger, USB cable, Spare pump filter (installed on unit during sampling), Flash drive containing Safety Suite Device Configurator Software, manuals, and documentation, Calibration T (optional), Quick start guide, Carrying case
- Display readout shows STEL, TWA, peak and minimum values
- Hazardous area classified for use in Class I, Div 1, Groups A-D environments
- Visual, audible, and vibratory alarms plus Man Down Alarm and policy enforcement indicators
- Datalogging up to three months
- Battery runtime eight hours minimum
| SKU | M020-11111-111 |
|---|---|
| Manufacturer | Honeywell RAE Systems |
| Kit Contents | QRAE 3 gas monitor with up to 4 installed sensors, Charger with USB connection, AC charger, USB cable, Spare pump filter (installed on unit during sampling), Flash drive containing Safety Suite Device Configurator Software, manuals, and documentation, Calibration T (optional), Quick start guide, Carrying case |
| Gas Sensor Type | Electrochemical Cell (EC) |
| Measuring Range H2S | 0 - 100 PPM |
| Measuring Range LEL | 0 - 100% LEL |
| Measuring Range CO | 0 - 500 PPM |
| Measuring Range O2 | 0 - 30% |
| Internal Memory | 3 months for 4 sensors at 1-minute intervals |
| Power | battery runtime 8 hours minimum |
| Shipping Dimensions (LxWxD) | 12x8x4 |
| Weight (lbs) | 3.000000 |
