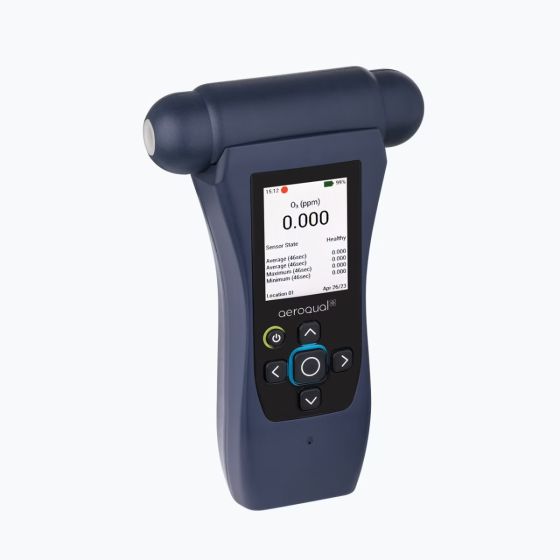

Ranger by AeroQual - Portable Ozone Monitor
The Aeroqual Ranger portable monitor can measure ozone concentrations using either a low-range OZL sensor (0 to 0.5 ppm) or a high-range EOZ sensor (0 to 10 ppm). This advanced handheld monitor is ideal for real-time ozone detection in both low-level and elevated exposure environments.
You can use it in a variety of applications, including environmental monitoring, indoor air quality assessments, perimeter monitoring for remediation sites, wildfire smoke exposure, vapor intrusion studies, health and safety compliance, and personal exposure tracking.
Kit includes: Carrying case, Ranger monitor base, OZL Ozone Sensor (low range), EOZ Ozone Sensor (high range), USB-C charger, USB-C data cable, USB C-A Adapter, and Calibration Certificates for Ozone Sensor Heads
Need to mount your Aeroqual during monitoring? Add a lightweight tripod with 1/4" mount to your rental.
-
Range: OZL - 0-0.5ppm, EOZ 0-10ppm
-
Resolution: OZL - 0.001ppm, EOZ 0.01ppm
-
Minimum Detection Limit: OZL - 0.001ppm, EOZ - 0.01ppm
-
Accuracy: OZL <±0.008 ppm (0–0.1 ppm) <±10% (0.1–0.5 ppm), EOZ <±0.01 ppm + 7.5%
-
Sensor Type: OZL = GSS, EOZ = GSE
-
Relative Humidity Range: OZL = 10-90%, EOZ = 15-90%
-
Real-time O₃ monitoring with swappable sensor heads
-
Data logging at 1 minute intervals. RAECO Rents does not offer Cloud data service with the Aeroqual Ranger
-
24-hour battery life for all-day monitoring
-
Charging Time: about 4-5 Hours
-
Lightweight, portable design with audible alarms
-
USB-C charging and data transfer
-
Backlit display for easy reading in all environments
| SKU | AQ RANGER |
|---|---|
| Manufacturer | Aeroqual |
| Kit Contents | Carrying case, Ranger monitor base, OZL Ozone Sensor (low range), EOZ Ozone Sensor (high range), USB-C charger, USB-C data cable, USB C-A Adapter, and Calibration Certificates for Ozone Sensor Heads |
| Shipping Dimensions (LxWxD) | 17in x 15in x 5in |
| Weight (lbs) | 7.000000 |
| Internal Memory | 5 years of continuous monitoring at 60 second Intervals |
| Sensor Types | OZL = GSS "Gas Sensitive Semiconductor", OZE = GSE "Gas Sensitive Electrochemical" |
