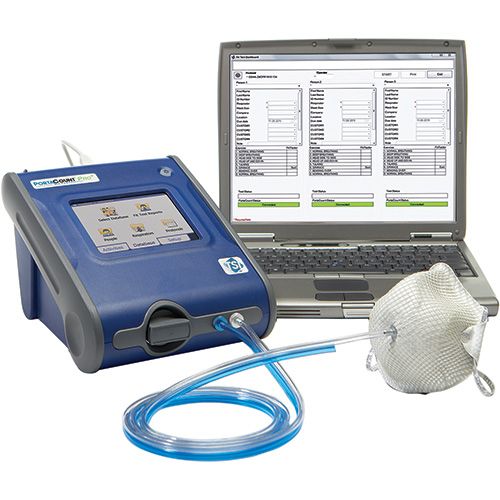

TSI's PortaCount® Pro+ 8038 is a quantitative respirator fit test system for testing disposable filtering facepieces Series 100, 99, P3, and HEPA masks, half and full-face tight-fitting respirators, gas masks, PAPR, and SCBA masks, plus N-95, P2, and P1 disposables. Use this if you've used a TSI PortaCount Plus 8020 with the 8095 N-95 companion to conduct past tests.
The PortaCount Pro 8038 is now ready to use the new OSHA-approved fast fit test protocol that reduces your test time by 65%. Please note that while the protocol is approved at the federal level, your state may not have yet accepted it. Please check with your state OSHA to make sure the test complies with local requirements.
Kits include: 8038 base unit, AC adapter, selected mask adapter kit, TSI 8026 particle generator (if requested below), alcohol cartridge, alcohol fill capsule, storage cap, two zero check filters, 8016 alcohol supply kit, 3/16" and 1/4" hose adaptors, two spare alcohol wicks, one package of 25 push probes/pushnuts, probe insertion tool, neck strap, carrying case, TSI FitPro fit test software CD, stylus, USB cable, 1GB USB flash drive, and user manual.
*TSI Fit Test Adapter Spreadsheet
SPECIFICATIONS
Fit Factor Range
1 to greater than 10,000, 1 to 200 for N95 masks
Typical Fit Factor Accuracy
±10% of reading
Respirator Facepieces that can be Fit Tested
Full-face elastomeric
Half-face elastomeric
NIOSH series-100 filtering-facepiece
NIOSH series-99 filtering-facepiece
NIOSH series-95 filtering-facepiece
Fit Factor Measurement
Direct measurement of fit factor (Cout/Cin)*
Dimensions
6.75 in. x 8.5 in. x 9.5 in. (17 cm x 22 cm x 24 cm)
Weight
Unit Only 6.8 lb (3.1 kg)
With Standard
Accessories and Case 18 lb. (8.2 kg)
Power
Autosensing 100 to 250 VAC, 50 to 60 Hz
Flow Rate
Sample 350 cm3/min
Total 1000 cm3/min (nominal)
Temperature Range
Operation 32 to 100°F (0 to 38°C)
Storage -40 to 160°F (-40 to 70°C)
Alcohol
Hours Per Charge 6 hours at 70°F (21°C)
Alcohol Type 99.5%+ reagent grade isopropyl
Carrying Case
Dimensions (HWD) 9 in. x 13.7 in. x 19.5 in.
(23 cm x 34.8 cm x 49.5 cm)
Pass/Fail Setting
User-selectable: 0 to 10,000
Factory Recalibration Interval
One year
Minimum PC Hardware Requirements for
FitPro+ Fit Test Software
Windows® 7 (32 and 64 bit), Windows 8 (32 and 64 bit),
or Windows 10 (32 and 64 bit) operating system
Microsoft.Net version 4 (installation software will install
Microsoft.Net if necessary) Note — An internet connection
is required to install Microsoft.Net
≥ 1 GHz process
≥ 12080 x 800 screen resolution monitor
500 MB free space on hard drive
1 free USB port
CD-ROM reader or internet connection (to install the software)
| SKU | 8038 |
|---|---|
| Manufacturer | TSI Alnor |
| Kit Contents | Included Items
|
| Shipping Dimensions (LxWxD) | 23x16x16 |
| Weight (lbs) | 25.000000 |
| Power | AC Line Power |
