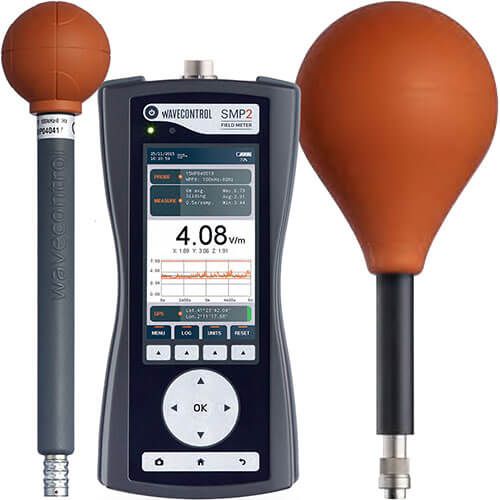

SMP2 DC Kit by WaveControl - EMF Meter with WPH-DC, WP400, and WPF18 Probes

SMP2-3

As low as $505.00

This kit includes 3 different probes for extreme versatility. The Wavecontrol SMP2 electromagnetic field meter offers broadband electromagnetic field metering plus industrial frequency spectrum analysis in a single portable unit. It uses Fast Fourier Transform (FFT) and Weighted Peak Method (WPM) for low frequency spectrum analysis. The SMP2's broadband field probes are interchangeable, and automatically recognized by the base unit for flexibility in measuring ranges and use across a broad range of EMF assessment and validation applications.

Kit Includes: Meter with WP400 (1Hz to 400kHz) WPF18 (300kHz to 18GHz) and WPH-DC (0 - 40 kHz) probes, PC software for control and reporting, PDF user manual, charging cord, calibration certificates, and a rugged carrying case.

The Wavecontrol SMP2 configured with the WP400, WPH-DC, and WPF18 field probes delivers complete electric and magnetic field measurement coverage across the full EMF spectrum. This versatile setup enables static magnetic field analysis with the WPH-DC probe (DC–40 kHz), low-frequency electric and magnetic field measurements with the WP400 probe (1 Hz–400 kHz), and high-frequency electric field detection using the WPF18 probe (300 kHz–18 GHz).

The SMP2 displays real-time field strength values across the X, Y, Z axes and total field including RMS, Peak, Max, Min, and Avg, using units such as V/m, A/m, µT, mT, W/m², and %. It supports broadband and frequency-selective modes, FFT-based spectrum analysis (1 Hz–400 kHz), and real-time Weighted Peak Method (WPM) comparisons against ICNIRP, EU Directive, FCC, and other global safety standards.

Kit Includes: SMP2 meter, WP400 probe, WPH-DC probe, WPF18 probe, AC charger, USB A-C cable, USB with manuals and software, calibration certificates Optional Add-ons: tripod, tripod extension kit.

Equipment Specifications

WP400 Probe Specifications

- Frequency Range: 1 Hz – 400 kHz
- Measurement Modes: Electric & Magnetic field, Real-Time FFT, Spectrum Analysis
- Electric Field Range: 4 mV/m – 100 kV/m
- Magnetic Field Range: 0.5 nT – 10 mT
- Resolution: Electric: < 4 mV/m, Magnetic: < 0.5 nT
- High-Pass Filters: 10 Hz, 25 Hz, 100 Hz
- Applications: Transformer stations, power grid sites, railway environments, and general industry exposure assessments

WPH-DC Probe Specifications

Frequency Range: DC – 40 kHz
Measurement Type: Magnetic field only
Measurement Range: 10 µT – 10 T
Dynamic Range: >120 dB
Field Types: Static and time-variable magnetic fields
FFT Span: 40 Hz, 400 Hz, 4 kHz, 40 kHz
Applications: DC-powered trains, Magnetic resonance environments, Battery facilities and electric vehicles

WPF18 Probe Specifications

Frequency Range: 300 kHz – 18 GHz
Measurement Type: Electric field only (RMS, isotropic)
Dynamic Range: 54 dB
Measurement Range:, 0.5 – 30 V/m (RMS), 0.5 – 250 V/m (CW)
Resolution: 0.5 V/m
Frequency Response: ±2 dB (1 MHz – 5 GHz), +0 / -6 dB (5 – 18 GHz)
Applications: RF exposure in telecom (WiFi, LTE, FM, etc.), Defense & industrial EMF assessments, Lab safety evaluations

Key Features

Dual-mode EMF meter: static, low-frequency, and high-frequency measurement in one device
Real-time time-domain and FFT-based spectrum analysis with digital processing
Simultaneous electric and magnetic field measurement
Battery life: 15 hours (broadband mode), 4.5 hours (selective mode)
Built-in Weighted Peak Method (WPM) for automatic, real-time comparison with exposure limits (ICNIRP, EU Directive, BGV B11, etc.)
Automatic probe recognition with ISO 17025-accredited calibration
RMS and peak displays, plus average, max, min, and time-series graphing
Adjustable measurement time from 1 second to 100 hours
High-pass filters at 10 Hz, 25 Hz, and 100 Hz
Data logging up to 1 million points; USB-C export and screenshot capture
Programmable alarms, spatial averaging, and selectable frequency span control

More Information

More Information
SKU	SMP2-3
Manufacturer	WaveControl
Kit Contents	Meter with WP400 (1Hz to 400kHz) WPF18 (300kHz to 18GHz) and WPH-DC (0 - 40 kHz) probes, PC software for control and reporting, PDF user manual, charging cord, calibration certificates, and a rugged carrying case.
Shipping Dimensions (LxWxD)	20x15x9
Weight (lbs)	15.000000
Power	Rechargeable Li-ion Battery
