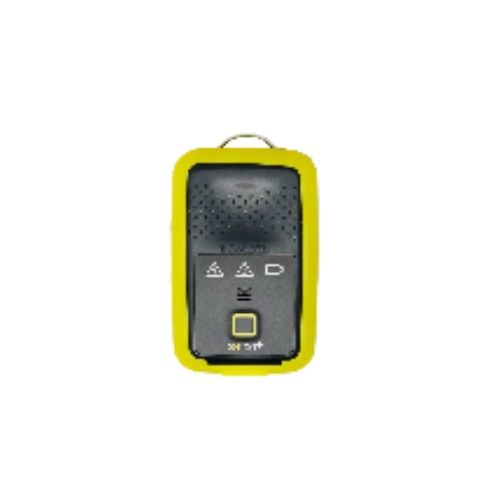

Trolex XD1+ real-time dust monitor is an OPC light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker's breathing zone. The XD1+ is incredibly compact and light weight with no filters, no pumps, no tubes and no replaceable parts. XD1_ gives instant alarms for fully customizable STEL and TWA measurements for PM1, PM2.5, PM4.25 and PM10.
The small lightweight, battery-operated unit can run 16 hours continuously, and logs up to 6 months at 10 second intervals. It has an 85dB audible alarm, visual icon illumination for STEL, TWA and Battery level as well as a vibration alerts.
- Samples real-time aerosol concentrations and 8-hour time-weighted averages
- Measures PM1, PM2.5, PM4.25 and PM10
- Logs up to 6 months data logging at 10 second intervals
- Rental includes Trolex BreatheLITE and BreatheMOBILE applications
| SKU | XD1+ |
|---|---|
| Manufacturer | Trolex |
| Kit Contents | Monitor, power supply, USB cable, user manual, calibration certificate, and carrying case. |
| Shipping Dimensions (LxWxD) | 15x12x6 |
| Weight (lbs) | 5.000000 |
| Measuring Range Air Flow | 0 - 1.8 LPM |
| Measuring Range Particle Size | 0.1 - 10 µm |
| Measuring Range Particle Concentration | 0.001 - 100 mg/m3 |
| Internal Memory | 1 GB |
| Power | Rechargeable Li-Ion battery pack |
