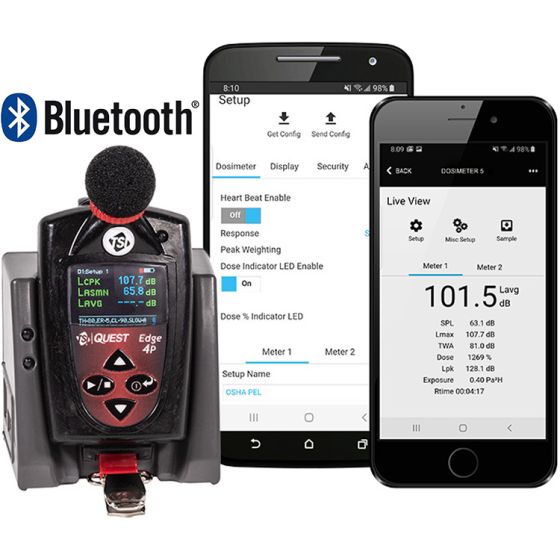

TSI Quest Edge 4 Plus Personal Noise Dosimeter with Bluetooth Connectivity
The TSI Quest Edge 4 Plus personal noise dosimeter features Bluetooth connectivity that lets you monitor multiple dosimeters from the Edge dB app. You can program the measurement settings to test for compliance to various government or association standards including OSHA PEL, OSHA Hearing Conservation, ACGIH, and MSHA.
Just like other dosimenters in the Edge series, the Edge 4 Plus is lightweight, has no microphone cable to get in the way, is comfortable to wear and easy to manage. The convenient display lets you know you've exceeded noise exposure limits. Data downloads easily to TSI Quest Detection Management Software through the EdgeDock and your PC's USB port. The Edge 4 Plus is for general service applications only. If you need intrinsically safe units, see the TSI Quest Edge eg5.
TSI AC-300 Calibrator always included with the rental at no additional charge.
- Two virtual dosimeters and datalogging for measuring ranges of 70 to 140 dB
- Displays SPL, dose, Lavg, Leq, TWA, maximum level, minimum level, peak level, exposure, and run time... all while in Run mode
- Independent selectable thresholds from 70 to 90dB or none, independent exchange rates for each dosimeter (3, 4, or 5 dB), and independent criterion levels from 70 to 90 dB in 1dB increments
- Rechargeable lithium polymer battery provides more than 60 hours run time
- Rental includes TSI/Quest Detection Management Software for data management, analysis, and reporting and AC-300 calibrator
- Color Screen and Bluetooth Capability to monitor with Edge dB App
| SKU | EG4P-D-AC3 |
|---|---|
| Manufacturer | TSI Quest |
| Kit Contents | Edge 4 Plus Dosimeter, Charging Dock w/ Power Cable, USB Cable, Flash Drive w/ Software and Manuals, Spare Battery for Calibrator, Spare Windscreen and Collar Clip, AC-300 Calibrator, and TSI/Quest Detection Management Software for data management, analysis, and reporting |
| Shipping Dimensions (LxWxD) | 15x13x7 |
| Weight (lbs) | 5.000000 |
| Frequency Weight | A,C,Z |
| Time Response | Fast, Slow |
| Measuring Parameters | Lavg, Leq, exposure, Min level, threshhold (TR), peak level, SPL, SEL (LEP), TWA, upper limit (UL), run time, max level, dose |
| Internal Memory | 180 hours |
| Power | Lithium Polymer (Flat cell) |
